Blood Bank Centrifuge, Refrigerated

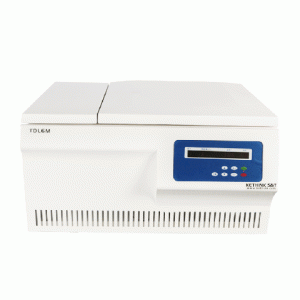

KT- TDL6M Blood Bank Refrigerated Centrifuge

TDL6M Programmable Logic Controlled (PLC) Blood Bank Refrigerated centrifuges are designed for separating blood components from whole blood. Blood Bank Refrigerated centrifuges are mainly used in biochemical products and scientific and technological research. Different substances can have different effects after being frozen. Can quickly separate blood components by freezing different substances.

Max Speed: 6000rpm
Max RCF: 5350xg
Max Capacity: 4*800ml
Speed Accuracy: ±10rpm
Temperature Range: -20°C 〜+40°C
Temperature Accuracy: 土1°C
Timer Range: 1〜99min/9h59min
Display: LED/LCD
Motor: Brushless AC frequency conversion
Power Supply: AC 220V 50HZ 10A
Output Power: 1KW
Noise: ≤60dB (A)
Net Weight: 110kg
Device Dimension: 600*700*450mm ( L* W* H )

KT-TDL6M KT-TDL6MR large capacity refrigerated centrifuge datasheet

Application:

Platelet,plasma, RBC and cryoprecipitate and it is ideal for Blood bank, Hospital ,clinical research laboratories, pharmaceutical industries, research laboratories, Biotechnology and vaccine manufacturing industry.

Features

Microcomputer control, AC brushless AC variable frequency motor drive, stable and quiet operation.
The RCF value and rotation speed of centrifugal force can be set separately, which can be switched with one key and can be observed at any time.
Adopt LED / LCD to display the parameters: speed, eccentricity, temperature and time. The parameters can be set at any time during operation without shutting down.

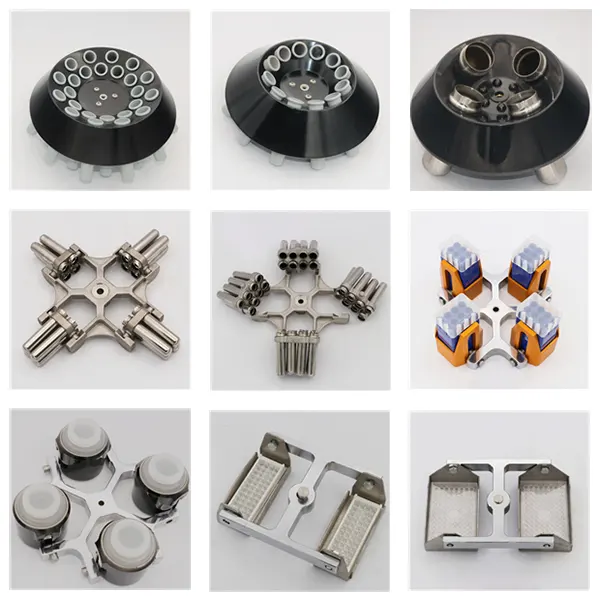

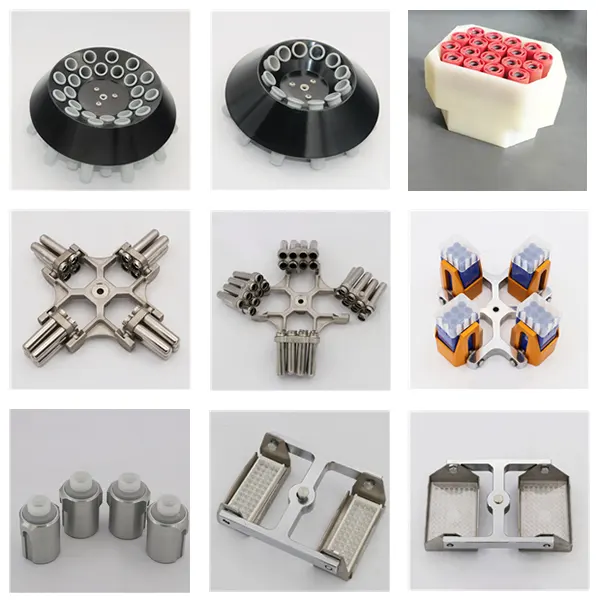

Equipped with a variety of pipe racks, pipe racks, adapters, multi-purpose machine. Application:separation and purification of radioimmunology, clinical medicine, biochemistry, biopharmaceuticals, and blood product.
The use of electronic door locks has strong safety performance, if the door is not closed properly, and the centrifuge cannot be started.

Model	Max Speed	Max RCF	Max Capacity	Temperature Range	Timer Range	Power supply	Power	Noise
KT-TDL5M(LED)/KT-TDL5MR(LCD)	5500rpm	4650 xg	4*750ml	-20°C 〜+40°C	1 ~ 99min/9h59min	AC 220V 50HZ 10A	1KW	≤60dB (A )
KT-TDL6M(LED)/KT-TDL6MR(LCD)	6000rpm	5350xg	4*800ml	-20°C 〜+40°C	1〜99min/9h59min	AC 220V 50HZ 10A	1KW	≤60dB (A)

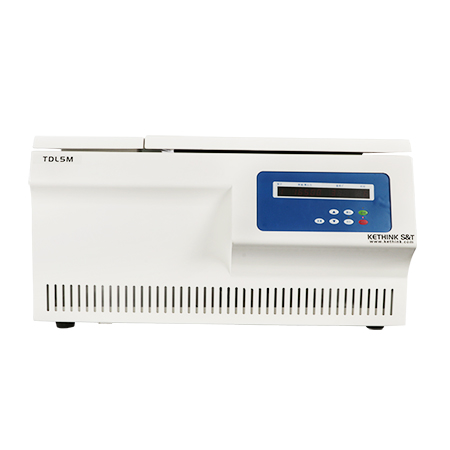

KT-TDL5M Blood Bank Centrifuge Machine

KT-TDL5M Blood Bank cum laboratory centrifuge is a piece of laboratory equipment. Driven by a motor, which spins liquid samples at high speed. Refrigeration constitutes an important added feature to any laboratory centrifuge. KT-TDL5M Blood Bank Centrifuges temperature ranges as wide as -20°c to +40°c, making them perfect for DNA, RNA, PCR or antibody analysis. A KT-TDL5M can obtain rotational speeds of over 5500rpm, and a relative centrifugal force (RCF) of over 4650xg.

Max Speed: 5500rpm
Max RCF: 4650xg
Max Capacity: 4*750ml
Speed Accuracy: 土10rpm
Temperature Range: -20°C 〜+40°C
Temperature Accuracy: 土1°C
Timer Range: 1 ~ 99min/9h59min
Display: LED/LCD
Motor: Brushless AC frequency conversion
Power: AC 220V 50HZ 10A
Compressed Units: imported environmentally friendly refrigerant
Output Power: 1KW
Noise: ≤60dB (A)
Net Weight: 110kg
Device Dimension: 600*700*450mm(L* W* H)

KT-TDL5M KT-TDL5MR large capacity refrigerated centrifuge datasheet

Application:

Separation and purification of radioimmunology, clinical medicine, biochemistry, biopharmaceuticals, and blood products.

Features

Microcomputer processor control,speed accuracy is ±10rpm.
Three-stage damping with brake function to prevent sample re-suspension.
Imported high-performance compressor units ensures precise temperature control, the fluorine-free refrigerant r404a ensures no pollution.
Fast cooling, it takes less than 5 minutes to drop from room temperature 21 ℃ to 4 ℃.
Large-screen LED digital control panel. LCD touch screen,the history ascending and declining curves can be displayed.
The use of electronic door locks has strong safety performance, if the door is not closed properly, and the centrifuge cannot be started.
