KT-MPC2800-mini-plate-centrifuge-data-sheet

96 Well Plate Centrifuge for 2 PCR Plates

KT-MPC2800 96 well Plate Centrifuge is designed for quick spins of samples in PCR plates. Primarily designed for use with 96 well plates and small volumes, it can accommodate skirted, non skirted and semi skirted styles.

Sealed plates are loaded vertically and surface tension keeps samples in place.There is no need to worry that the samples will spill. This centrifuge can accomondate all standard 96/384 well PCR plates. Foam adapters that comes with the machine help to reduce noise and makes it easier to fix the tube.

Model: KT-MPC2800
Rotating speed: 2200~2800rpm
Timing range: 15sec ~1min59sec
Max(RCF): 550xg
Acceleration time : ≤10sec(from 0 to 2800rpm)
Brake time: ≤4sec(from 2800rpm to 0)
Lid Open Auto Stop: Yes
Short run: Yes
Capacity: 2 PCR plates(0.2ml, 96 well plate)
Power: 45W
Voltage: AC100~240V/50-60Hz
Fuse: 250V/3A Ф5×20
Dimension(mm): 260*240*226
Weight(kg): 3.3
Ambient temperature: 0°C ~ 35°C
Relative humidity ≤70%

KT-MPC2800 96 PCR Plate Centrifuge Features

Use before & after thermal cycling to increase PCR yield.
Standstill to maximum speed in just 10sec. Rapid start to stop.
Short braking time, just 4 sec.
Real-time display,support countdown mode.
Open lid protection.
Accommondates 2 standard 96 well plate.
Easy cleaning & simple operation.
2 years warranty.

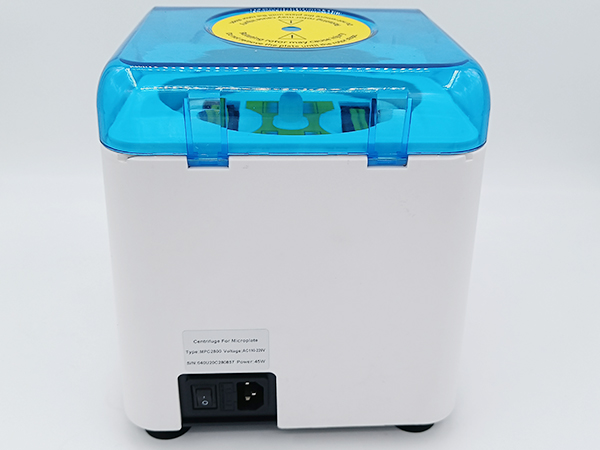

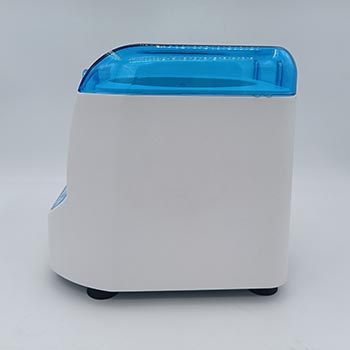

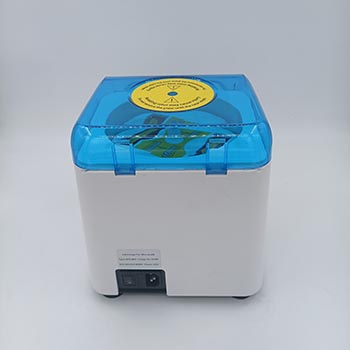

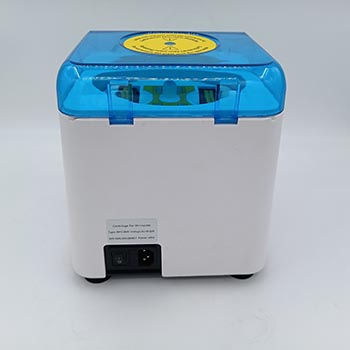

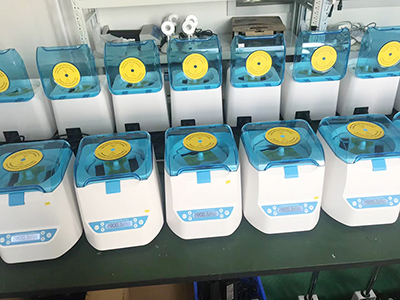

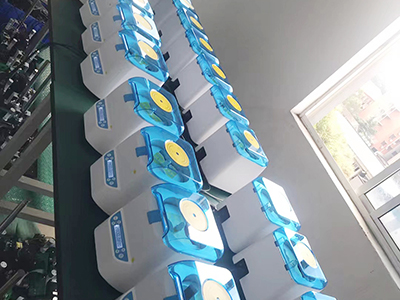

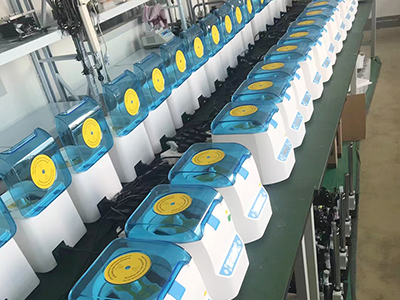

Operating Video & Pictures

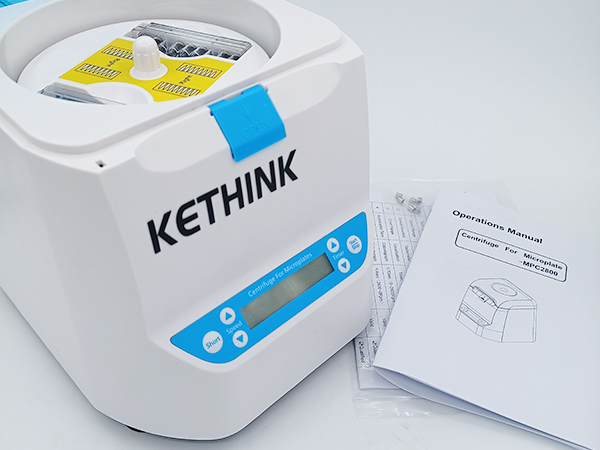

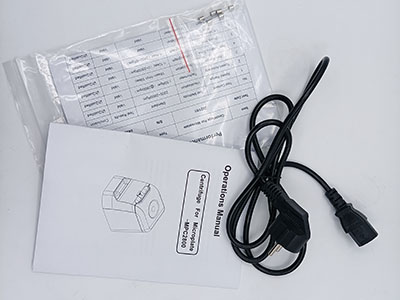

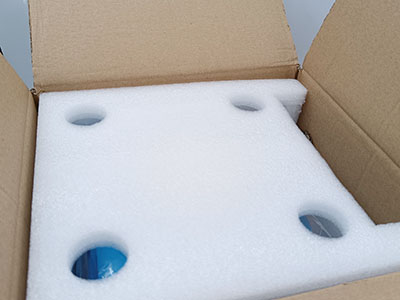

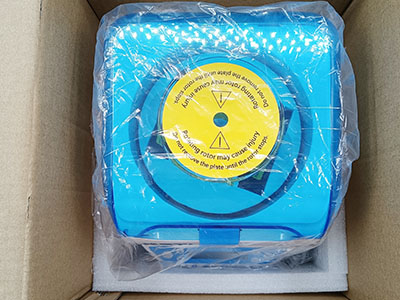

Packing & Accessories

plate centrifuge *1 set

power cord * 1pcs(EU,US, CN, JP,etc power plugs available upon request)

250V/3A fuse*3pcs

Product performance test table* 1 pcs

Certificate of conformity* 1pcs

Warranty certificate*1pcs

User Manual*1 pcs

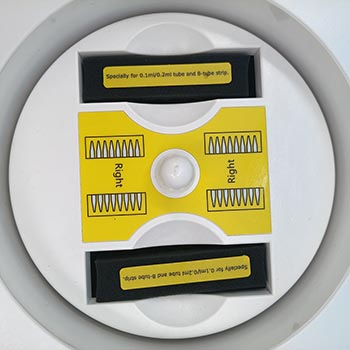

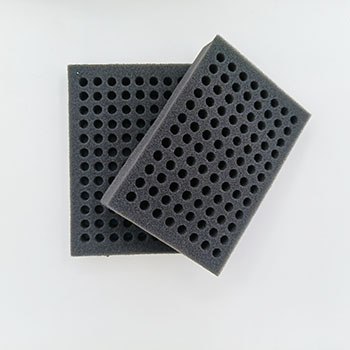

foam adapter for 0.2MLPCR tube, 8 rows *2pcs

How to centrifuge 96 well plate?

KT-MPC2800 mini plate centrifuge makes the safe and quick spin down of droplets and condensation very easy,and it is very small in size – just 26cm*24cm.

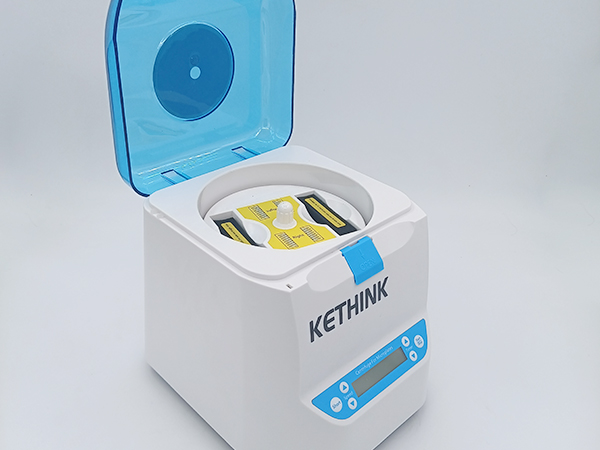

Step1: Power on, press the lid button(OPEN), open the lid.

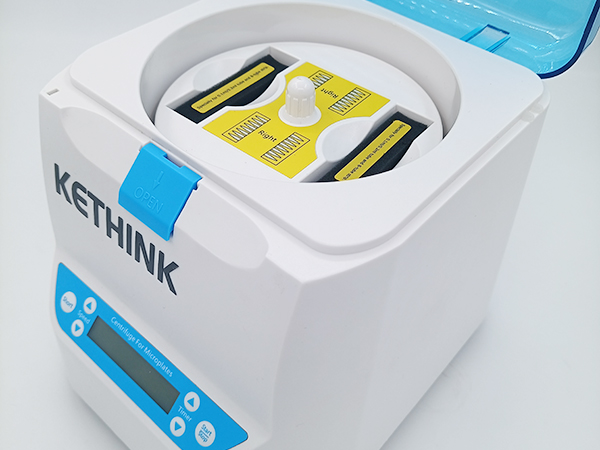

Step 2: Put 2 pcs sealed micro plates vertically in a centrifugal tank through a slot in the top of the centrifuge unit. (note: If spinning only one plate, it is extremely important to load another plate of the same brand, style and sample volumes (water can be used) as a balance.If the load weight is not the same on both sides of the rotor, it will cause the device to run shaking, and will damage the device.)
Step 3:Check & make sure the micro plates are installed in the correct direction.
Step 4: Close the lid.
Step5: Set speed & time, press “start”.
