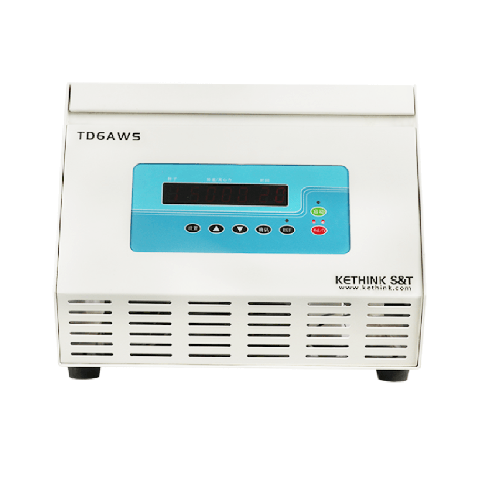

KT-TD6AWS ELECTRIC CENTRIFUGE MACHINE, LOW SPEED 6000RPM
The highlight feature of KT-TD6AWS electric centrifuge with max speed 6000rpm is its extraordinary auto-balance function & versatility. Centrifuge tubes placed in symmetrical positions in the rotor can be auto balanced if the total capacity difference is less than 20g.
The KT-TD6AWS is a versatile electric centrifuge that can be used in many lab experiments. With various standard angle rotors & horizontal swing rotors, it can be used to centrifuge components that require lower rotating speed and less volume. i.e. It can be used for PRP preparation too. Set speed to 3500rpm-4000rpm and select our NO1-NO9 angle rotors that can easily separate platelet-rich plasma of microvolume for facial treatment or big volume for body sculpturing.
KT-TD6AWS Electric Centrifuge Machine Features
| Model NO | KT-TD6AWS(LCD) KT-TD6AMR（LED） |
| Max Speed | 6000rpm |
| Max RCF | 5180xg |
| Max Capacity | 4 * 800ml |
| Speed Accuracy | ± 20rpm |
| Timer Range | 1-99min/9h59m |
| Display | LED/LCD |
| Motor | AC Inverter Motor |
| Power | 700W AC 220V 50HZ 10A |
| Noise | ≤62dB（A） |
| Net Weight | 48Kg |
| Dimensions | 620 *520 * 390mm(L*W*H) |
| NO | ITEM | MAX SPEED(rpm) | MAX RCF(xg) | CAPACITY(ml) | TUBE SIZE(mm) |
| NO.1 | Angle rotor | 6000rpm | 5180xg | 12* 10ml | Φ16 *87 |
| NO.2 | Angle rotor | 5000rpm | 2540xg | 6 *15ml (option 5/7/10ml) | Φ16*118 |
| NO.3 | Angle rotor | 5000rpm | 3080xg | 12* 15ml (option 5/7/10ml) | Φ16*118 |
| N0.4 | Angle rotor | 5000rpm | 3515xg | 24 * 15ml (option 5/7/10ml) | Φ16*118 |
| NO.5 | Angle rotor | 5000rpm | 3830xg | 30*15ml (option 5/7/10ml) | Φ16*118 |
| N0.6 | Angle rotor | 5000rpm | 2520xg | 4 * 50ml | Φ29*106 |
| NO.7 | Angle rotor | 5000rpm | 2850xg | 6 * 50ml | Φ29*106 |
| NO.8 | Angle rotor | 5000rpm | 2630xg | 4* 100ml | Φ37*124 |
| NO.9 | Angle rotor | 5000rpm | 3130xg | 6 * 100ml | Φ37*124 |
| NO.10 | Horizontal Rotor | 4200rpm | 3157xg | Rotor body | – |
| Tube Rack | 4200rpm | 4200rpm | 4*8* 5/7ml | Φ13*95 | |
| Tube Rack | 4200rpm | 4200rpm | 4*8*10/15ml | Φ16 * 87 | |
| Tube Rack | 4200rpm | 3157xg | 4 * 2*50ml | Φ29*106 | |
| Tube Rack | 4200rpm | 4200rpm | 4 * 1* 100ml | Φ37*124 | |
| Tube Rack | 4200rpm | 4200rpm | 4*2*100ml | Φ37*124 | |
| NO.11 | Horizontal Rotor | 4000rpm | 3016xg | 4 * 250ml 4 hanging cups | Φ64*125 |
| Adapter | 4000rpm | 3016xg | 4*8* 5/7 ml | Φ13*95 | |
| Adapter | 4000rpm | 3016xg | 4*8*10/15ml | Φ16*135 | |
| Adapter | 4000rpm | 3016xg | 4*2 *50ml | Φ29*106 | |
| Adapter | 4000rpm | 3016xg | 4 * 1 * 100ml | Φ37*124 | |
| Adapter | 4000rpm | 3016xg | 4*2* 100ml | Φ37*124 | |
| NO.12 | Horizontal Rotor | 4000rpm | 3515xg | 4* 500ml 4 hanging cups | Φ78*150 |
| Adapter | 4000rpm | 3515xg | 4*4*50ml | Φ37*124 | |
| Adapter | 4000rpm | 3515xg | 4* 12 * 5/7ml | Φ13*95 | |
| Adapter | 4000rpm | 3515xg | 4*16* 5/7ml | Φ16*87 | |
| Adapter | 4000rpm | 3515xg | 4*16*10/15ml | Φ29*106 | |
| Adapter | 4000rpm | 3515xg | 4 * 2 * 100ml | Φ37*124 | |
| Adapter | 4000rpm | 3515xg | 4*3 *100ml | Φ37*124 | |
| Adapter | 4000rpm | 3515xg | 4*1* 250ml | Φ64*114 | |
| NO.13 | Horizontal Hanging Rotor | 4000rpm | 3016xg | 4* 18*5/7ml | Φ13*95 |
| NO.14 | Horizontal Hanging Rotor | 4000rpm | 3016xg | 4*24* 5/7ml | Φ13*95 |
| NO.15 | Horizontal ELISA Plate Rotor | 4000rpm | 2310xg | 2*2*48 hole | |
| NO.16 | Horizontal ELISA Plate Rotor | 4000rpm | 2310xg | 2*2*96 hole | |
| NO.17 | Horizontal ELISA Plate Rotor | 4000rpm | 2490xg | 4*2*96 hole | |
| NO.18 | Horizontal ELISA Plate Rotor | 4000rpm | 2850xg | 4*4*96 hole |

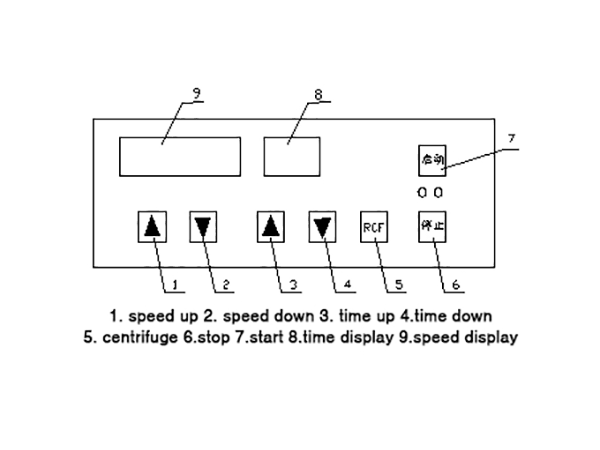

A: Unlike traditional handy centrifuge, a centrifuge machine is driven by a brushless motor and LED/LCD display the rotating speed, RCF & time. Large, bright and intuitive LED display / LCD touch screen is suit for convenient and fast operation settings.
A: The price of a centrifuge machine varies depending on the brand, place of origin, type and model. Price ranges for each type of KETHINK centrifuge are：
(1). Benchtop: $200 to $3,000
(2). Large Capacity: $500 to $8,000
(3). High Speed: $400 to $18,000
An extra refrigerated function needs extra money for the above types. Additional standard rotors with different volumes need extra costs. Customized rotating speed and rotors are available too.

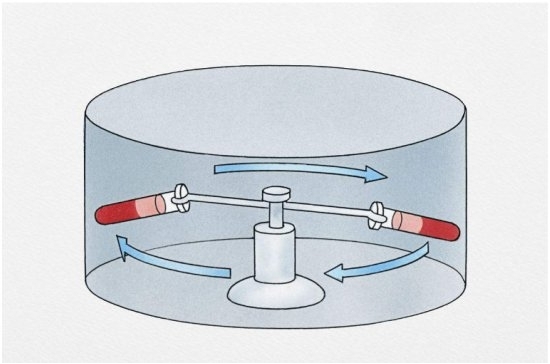

A: Centrifugation is to use the strong centrifugal force generated by the high-speed rotation of the centrifuge rotor to accelerate the sedimentation speed of the particles in the liquid, and separate the substances with different sedimentation coefficients and buoyancy densities in the sample. A centrifuge machine is an electric-driven modern scientific device that can provide a centrifugal force to speed up the sedimentation of the sample.
A: Lab centrifuges, dehydrators, centrifugal blowers, washing machines, large amusement machines, etc are equipment that applies the principle of centrifugal application in real life.
WHOLESALE ELECTRIC CENTRIFUGE
KETHINK is a famous and leading manufacturer, supplier and factory from China. We offer electric centrifuges. And we can accept OEM/ODM centrifuge orders for commercial applications. Our centrifuges are of medical centrifuge, blood centrifuge, lab centrifuge and microcentrifuge etc types. Our centrifuges are widely used for platelets, plasma, red blood cells and cryoprecipitate. Ideal for blood banks, hospitals, clinical research laboratories, pharmaceutical industry, research laboratories, biotechnology and vaccine manufacturing industries.
Don’t you find what you are looking for?
Just tell us your detailed requirements. The best offer will be provided.
BEST ELECTRI CENTRIFUGE MANUFACTURER, FACTORY, SUPPLIER IN CHINA
KETHINK (CHANGSHA KETHINK S&T CO) has been the best electric centrifuge manufacturer, factory, and supplier in China since 2012. ISO9001:2012 approval, and CE RoHS Certificates.
We have rich experiences in production & research development for different centrifuge types. We focus on advanced technology, strict manufacturing step, and a perfect QC system.
We can design and produce rotor that meet customer requirements according to customers’ different market.
BEST ELECTRI CENTRIFUGE IN CHINA
KETHINK is a electric centrifuge supplier, factory, and manufacturer, providing most of the different types of centrifuge .
- Plate Centrifuge: 96 well plate centrifuge, mini plate spinner centrifuge, benchtop plate centrifuge, microplate centrifuge.
- Refrigerated Centrifuge: refrigerated benchtop centrifuge, refrigerated micro centrifuge, floor standing refrigerated centrifuge.
- Mini Centrifuges : Benchtop mini centrifuge, Mini spin microcentrifuge, Mini plate spinner centrifuge
- Laboratory centrifuge: PRP Centrifuge, PCR Plate Centrifuge, Crude Oil Centrifuge, Gel card centrifuge.
BEST SERVICES FROM CHINA CENTRIFUGE MANUFACTURER
- OEM/ODM is available, and centrifuges or rotors can be customized freely.
- There are no MOQ restrictions for retailers, wholesalers, distributors or engineering companies.
- control panel, logo,rotor customizable.
- 1-year product after-sales service: After the expiration of the warranty period of each brand of centrifuge, the maintenance will be charged.
China electric centrifuge manufacturer,factory and supplier
We can provide EMC Files to do commercial projects
What we can offer you…
Best Quality
We have rich experience in the manufacture, design and application of centrifuge, and served more than 210 customers from worldwide.
Competitive Price
Our centrifuge has an absolute advantage in price. Under the same quality, our price is generally 10%-30% lower than the market.
Testing Service
All products have been EMC tested to ensure the operator’s safety and reliability of the centrifuge in the working process.
After-sale
We provide 1 year guarantee policy. Within warranty period, maintenance costs due to product quality will be on our account.
Shipping
We have experienced shipping forwarder, available to do shipping by air express, sea, and even door to door service.
Our Certificates
As a professional centrifuge manufacturer, our factory has passed the latest ISO9001:2010, CE, RoHS, ISO 13485 certificates.

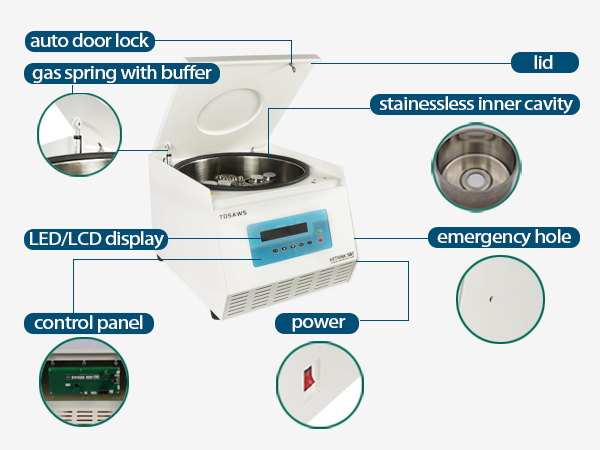

ELECTRIC CENTRIFUGE DIAGRAM
The electric centrifuge is an ideal high-speed separation equipment in the fields of biology, medicine, pharmacy, and epidemic prevention. The working principle of the electric centrifuge is mainly divided into two parts: the centrifugal part and the freezing part.The basic structure of the electric centrifuge includes: drive system,control system,refrigeration system,safety protection system,rotor,shell, lid, inner tank, etc. The RPM, centrifuge time & the centrifuge temperature can be controlled by program of control system.
INSTALLATION GUIDE
4 – Step installation guide for medical centrifuge
