Basic Information
Model NO: KT-ND100-2
MOQ: 1 set
Price: negotiable
Warranty: 2 years for free,technical support for life
Packing: carton box with anti-shock foam
Payment: TT, paypal,western union
Delivery: within 5-7working days

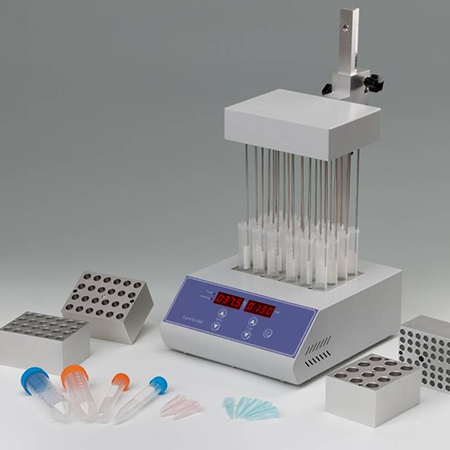

KT-ND100-2 Product Specification
KT-ND100-2 sample concentrator is with microprocessor controlled and PID fuzzy controlled technique.
Instead of traditional water bath device, the heat-conducting medium is high purity aluminum.
The Test tubes are held in block, and blowing a large number of samples at one time.
It can used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
| Model | KT-ND100-2 |
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time range | 1min-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃) |
| Needle length | 150mm |
| Nitrogen flow rate | 15L/min |
| Nitrogen pressure | 0.02Mpa(Gas needle≤16pcs)0.05Mpa(Gas needle＞16pcs) |
| Block quantity | 2 |
| Max power | 500W |
| Voltage | AC220V or AC110V, 50/60Hz |
| Dimension(mm) | 260*220*450 |
| Weight(kg) | 7.5 |
| Type | Description | Type | Description |
| MD03 | 24*10mm | MD09 | 12*20mm |
| MD04 | 24*12mm | MD10 | 8*26mm |
| MD05 | 24*13mm | MD11 | 4*28mm |
| MD06 | 16*15mm | MD12 | 3*40mm |
| MD07 | 16*16mm | MD15 | 24*1.5ml(centrifuge tube) |
| MD08 | 12*19mm | MD16 | 24*2.0ml(centrifuge tube) |
