Basic Information
Model NO: KT-ND200-1
MOQ: 1 set
Price: negotiable
Warranty: 2 years for free,technical support for life
Packing: carton box with anti-shock foam
Payment: TT, paypal,western union
Delivery: within 5-7working days
KT-ND200-1 Product Specification

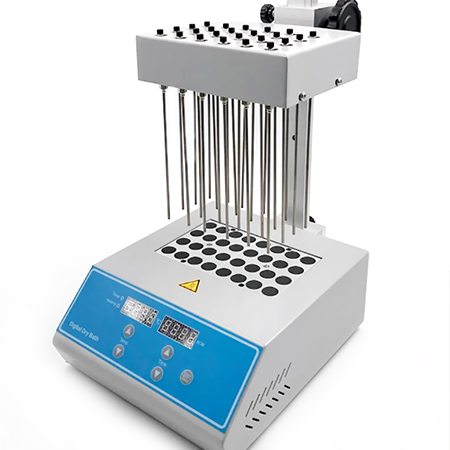

KT-ND200-1 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique.
Instead of traditional water bath device, the heat-conducting medium is high purity aluminum.
The Test tubes are held in a block, and blowing a large number of samples at one time.
It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
| Model | KT-ND200-1 |
| Temp range | RT.+5℃-160℃ |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Timing range | 1min-99h59min/∞ |
| Heating time | ≤15 min(from 25℃ to 160℃) |
| Needle length | 150mm |
| Nitrogen flow rate | 15L/min |
| Nitrogen pressure | 0.1Mpa |
| Block quantity | 1 |
| Max power | 300W |
| Voltage | AC220V or AC110V, 50/60Hz |
| Dimension(mm) | 260*220*475 |
| Weight(kg) | 6.0 |
| Type | Description | Type | Description |
| MD50 | 12*10mm | MD54 | 12*16mm |
| MD51 | 12*12mm | MD55 | 12*19mm |
| MD52 | 12*13mm | MD56 | 12*20mm |
| MD53 | 12*15mm | — | — |
